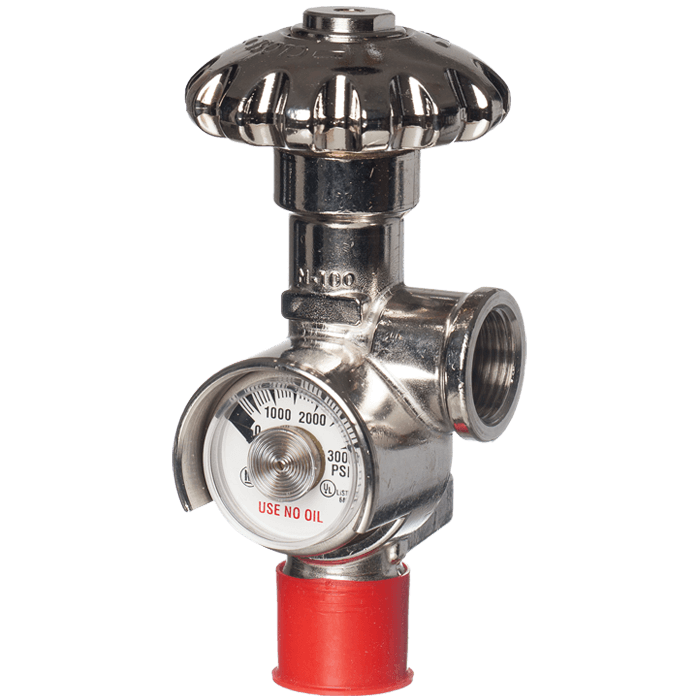

3/4" Nitrogen Valve with Gauge

3/4" Nitrogen Valve with Gauge | RS Steel

Certifications

3/4" Nitrogen Valve with Gauge for Dry Chemical Wheeled Unit.

- UL/ULC Listed (File# MH13426)

• 3/4" Nitrogen Valve
• 3,000/4000 PSI Gauge
• Burst Pressure 3,360 PSI for 3000 PSI Gauge and Burst Pressure 4,000 PSI at 160?F for 4000 PSI Gauge
• Maximum working pressure 2,200 PSI for 3000 PSI Gauge and Maximum working pressure 2,640 PSI for 4000 PSI Gauge
• Outlet connection: female CGA 580 (0.965-14 NGO R.H. Thread)
• Inlet base connection: Male 3/4 -14 NGT

This valve is intended for use on Department of Transportation (DOT) cylinders, excluding Type DOT-4L cylinders, charged with nitrogen not exceeding 2,200/2640 PSI. The valves include a listed high pressure gauge.

Each valve is provided with a rupture disc device, Type CG-1, which is a non-reclosing pressure-relief device actuated by inlet static pressure, and designed to release excess pressure of a normal charged cylinder, when exposed to abnormal conditions, by bursting a pressure containing disk. Model N100 is designed to burst at a maximum pressure of 3,360PSI at 160 Degree Fahrenheit. Model N100-4 is designed to burst at a maximum pressure of 4000 psig at 160?F and relief device has been investigated in accordance with the Compressed Gas Associate (CGA) Pressure Relief Device Standard S-1.1, Part 1, Cylinders for Compressed Gases, for use on non-insulated DOT cylinders for non-liquefied gases, not exceeding 146.9 lb, Model N200QR4, water capacity.
