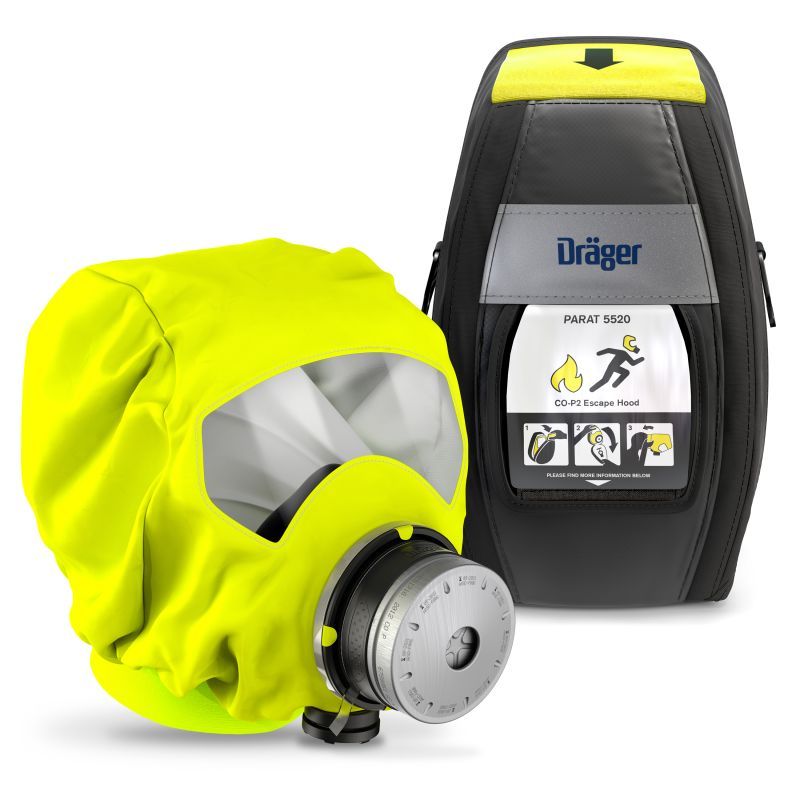

Draeger PARAT? 5520 Escape Hood - Soft Pack

Draeger PARAT? 5520 Escape Hood - Soft Pack | Dr?ger

The PARAT 5520 Soft Pack provides rapid respiratory protection against hazardous gases and smoke. Its portable design is ideal for industrial facilities, refineries, and chemical plants. Soft carrying case for quick access and deployment.

Dr?ger PARAT? Filtering Escape Hoods
The PARAT? filtering escape hoods were developed with users, placing the focus on the fastest possible escape. Optimized operation and wearing comfort, a robust case and a sealed filter ensure protection from toxic industrial and/or fire-related gases, vapors and particles for at least 15 minutes.

Ready for escape in only 3 steps
Exceptionally innovative and intuitive: When opening the soft pack or hard case packaging, the filter plug is automatically released from the filter. The filter is then deployed into operational position and the hood can be immediately donned. Thanks to the self-adjusting internal head harness, no additional adjustment is required. All you have to do is open the packaging, remove and don the hood? and leave the danger zone.

Reliable protection
Choose from fire escape, industrial escape or a combination of fire and industrial escape. The high-performance combination filter reliably protects against a wide range of fire and/or toxic industrial gases, vapors and particles? depending on the version. The filters are approved according to the EN standard 403:2004 for fire escape hoods and/or the DIN standard 58647-7 for industrial filtering escape devices. Additionally, the industrial versions are tested in accordance with NIOSH 42 CFR Part 84 and the EN standard 14387:2004 for gas and combined filters.

To keep the filter safe over its long lifetime, it is tightly sealed with two filter plugs.

16 years of service life
Replacing the filter after eight years will extend the service life of the Dr?ger PARAT Escape Hood to 16 years in total. For this, Dr?ger offers filter replacement service or expert training for your employees.

Robust and ergonomic
Both ergonomics and wearing comfort were considered when designing the soft pack and hard case packaging of the Dr?ger PARAT Escape Hoods. The escape hood can be carried with a belt, shoulder strap, grip clip or belt clip. The PARAT Hard Case can also be mounted on the wall using a wallholder. Additionally, the robust packaging of the Dr?ger PARAT Escape Hoods protects the device from damage.

Different packaging types
You can select between different packaging types: The hard case provides splash water protection (IP54)? the soft pack provides ingress dust protection (IP5). Both packaging types have a viewing window to check the filter expiration date and the condition of the device. Particularly convenient: The security seal on the packaging shows if the unit has been opened.

• Filtering escape hood: ?
• Filtering escape device: ?
• Filter type: ABEK P3, CO P2 or ABEK CO P3
• Escape time: min. 15 minutes
• Lifetime: 16 years (filter exchange required after 8 years)
• Packaging options: Soft Pack (dust protection IP5);Hard Case (splash water protection IP54);Single Pack (carton box - only with fire escape hood)
• Weight: 1.83 lb
• Protection against Industrial gases: ? optional
• Protection against Fire related gases: ? optional
• Protection against Vapours: ? optional
• Protection against Particles: ? optional
• Eye protection: ?
• Filter expiry date: ?
• Training unit: ?
• Wall mounting: ? (Hard Case only)
• Hip strap: ? (not for Single Pack)
• Shoulder strap: ? (not for Single Pack)
• Belt clip: ? (not for Single Pack)
• Grip clip: ? (not for Single Pack)
• D-Ring: ? (not for Single Pack)
• Carrying case: ? (Single Pack only)
• Slip guard carabiner: ?
• Hand strap: ?
• Approvals: EN 403:2004 ?(only PARAT 5500 and 7500); DIN 58647-7 ?(PARAT 5500: tested for use against H2S at 2.500 ppm); EN 14387:2004 (only filter); ? (only PARAT 4700 and 7500); EN 137:2006 Typ 2 ; NIOSH 42 CFR Part 84?
