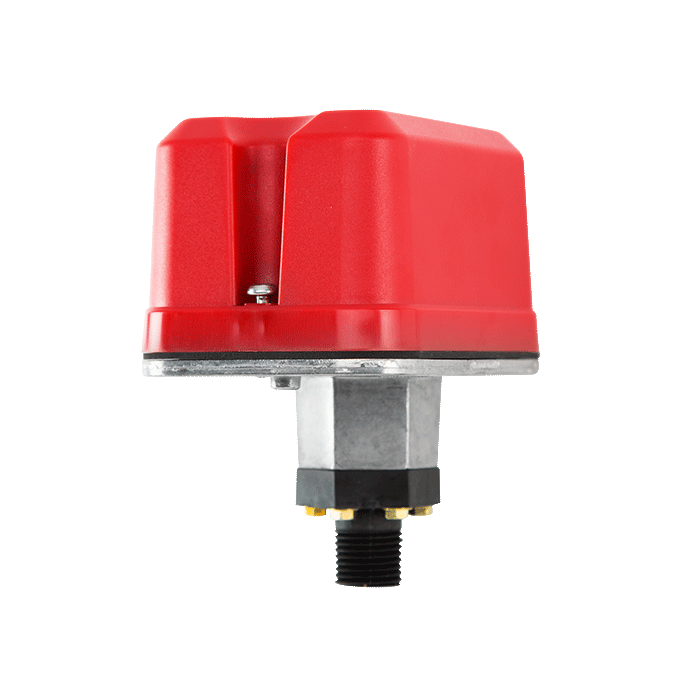

High/Low Pressure Supervisory Switch - Two SPDT - 10?100 PSI - Plastic Fitting

High/Low Pressure Supervisory Switch, Two SPDT, 10?100 PSI - Plastic Fitting | RS Steel

System Sensor EPSA40 Series supervisory pressure switches are intended for dry pipe systems or pressure tanks and water supplies of automatic water control valves. This model offers a choice of initiating low or high/low pressure monitoring alarms, in a variety of pressure ranges.

The EPS40A-2 is a field-adjustable pressure switch that provides an alarm response between 10 and 100 PSI. It includes two SPDT switches. NEMA 4 Rated.

• Contact Ratings:
• - 10 A, 1 / 2 HP @ 125/250 VAC
• - 2.5A @ 6/12/24 VDC
• Operating Temperature Range: ?40?F to +160?F
• Maximum Service Pressure: 250 PSI
• Adjustment Range: SW2 (Min.) 10 PSI; SW1 (Max.) 100 PSI
• Enclosure Rating:
• - UL 4x - Indoor or Outdoor Use
• - NEMA 4 - Indoor or Outdoor Use
• Approximate Differential Limits: 3 PSI at 10 PSI - 6 PSI at 100 PSI
