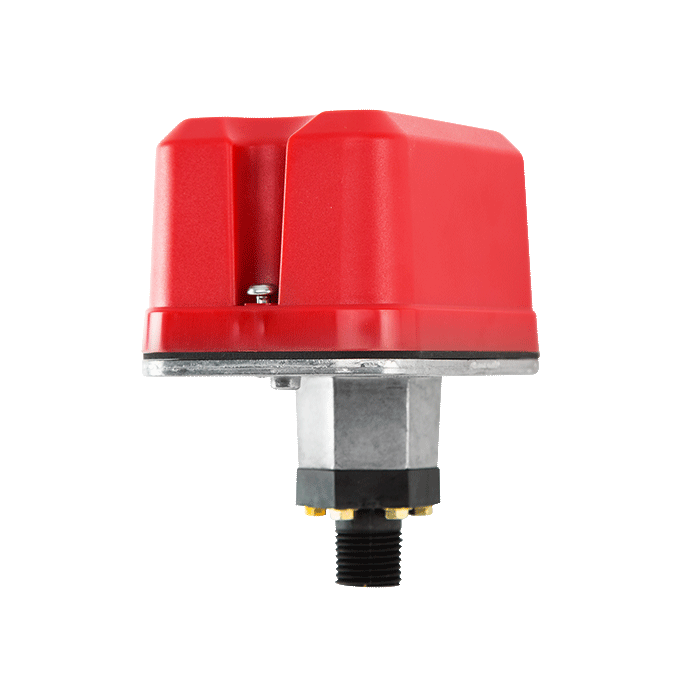

Low Pressure Supervisory Switch - One SPDT - 10-100 PSI - Plastic Fitting

Low Pressure Supervisory Switch - One SPDT - 10-100 PSI - Plastic Fitting | RS Steel

System Sensor EPSA40 Series supervisory pressure switches are intended for dry pipe systems or pressure tanks and water supplies of automatic water control valves. This model offers a choice of initiating low or high/low pressure monitoring alarms, in a variety of pressure ranges.

The EPS40A-1 is a field-adjustable pressure switch that provides an alarm response between 10 and 100 PSI. It includes one SPDT switch. NEMA 4 Rated.

• Contact Ratings:
• - 10 A, 1/2 HP @ 125/250 VAC
• - 2.5A @ 6/12/24 VDC
• Operating Temperature Range: ?40? to +160?F
• Maximum Service Pressure: 250 PSI
• Maximum Adjustment Range: 4 ? 20 PSI
• Enclosure Rating:
• - ULC 4x ? Indoor or Outdoor Use
• - NEMA 4 ? Indoor or Outdoor Use
• Approximate Differential: 3 PSI throughout range

Download Files
