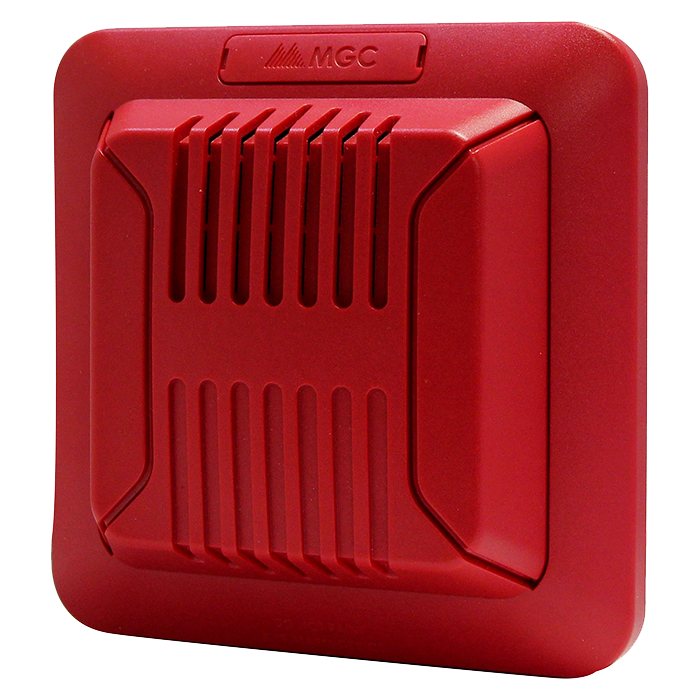

MGC FH-400 Wall/Ceiling Mount Horn

MGC FH-400 Wall/Ceiling Mount Horn | RS Steel

Certifications

The FH-400 Series Horns provide a wide range of audible settings in a single compact device. The audible settings include Temporal, Continuous, March Time and 20 BPM tones that can each be set for Low or High volume settings.

• Compact Design
• Lower power consumption per device allows for more notification appliances per circuit and reduces the need for external power supplies
• Multiple field-selectable audible settings
• - Temporal, Continuous, March Time and 20 BPM audible tones
• - High and Low volume settings
• Wall and ceiling-mount
• Red or white finish
• Device settings are located on the back of the unit to prevent tampering
• Includes shorting clip that allows installers to test the wiring before the device is installed
• Supports 12 to 22 AWG
• Mount to Mircom BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon, and 4-inch junction boxes
• All units include universal mounting plate
• For indoor applications
