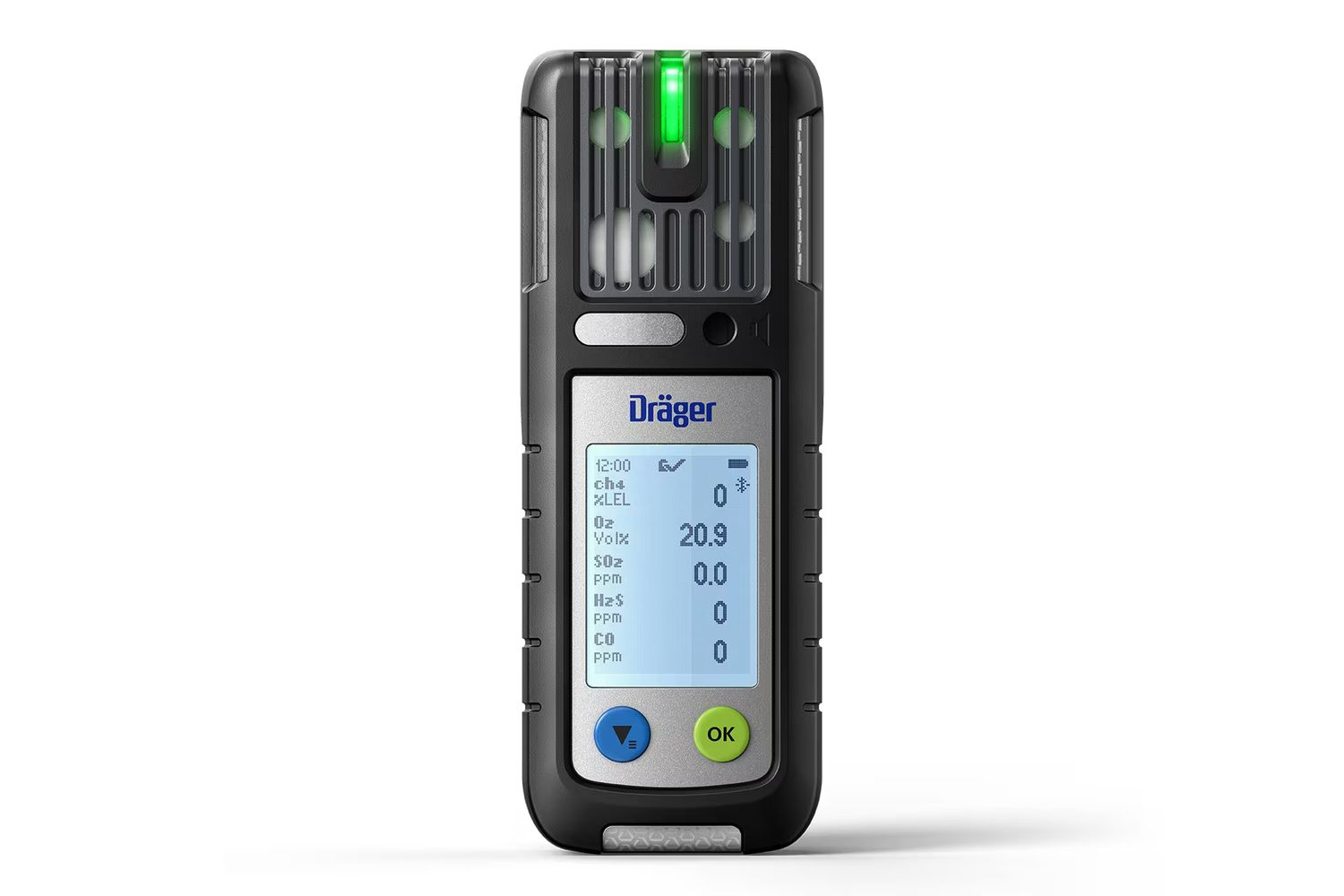

Draeger X-am? 5800
The X-am? 5800 multi-gas detector measures up to six gases and is equipped with a shock-resistant CatEx SR sensor. With the Draeger Gas Detection Connect software, it offers live data transmission and powerful fleet management. Designed for personal monitoring, the X-am 5800 offers the highest level of safety at a low cost of ownership.

Powerful data analysis in the cloud
Networking capability provides safety and efficiency: Transfer your recorded data directly and conveniently via Bluetooth to a smartphone and the Gas Detection Connect software. As an alternative, you can also transfer the data directly to the cloud with the X-dock test station, providing secure access to your data and its analysis any time and anywhere with access to the internet.

Comfortable Fleet Management
Manage your fleet of equipment comfortably and efficiently with the X-am 5800. Save operating costs and time with fast tests, using the automatic test station X-dock, with low gas consumption or mechanical bump test station. Further advantages include powerful fleet management via our smart software solution, convenient firmware updates in the X-dock, an optional RFID transponder, and individual color marking of the devices. Sensors are durable and devices remain operational for years, with easy-to-replace spare parts, including the power supply. Draeger provides a 4-year manufacturer's warranty on the basic device, and is compatible with X-am 5800 accessories.

Tailor-Made Gas Monitoring
The X-am 5800 is small and lightweight, comfortable to wear, and easy-to-use, with large buttons for ease of use while wearing gloves. The display clearly shows important information, such as gas readings, alarms and time. The green D-light indicates that the unit is ready for use, with a simple interface. For added safety, the oxygen channel has four alarm thresholds, real pre-alarms, and main alarms for falling and rising concentrations. The X-am 5800 is approved for use in Ex zone 0, and has been tested according to protection class IP 68.

Sensors: Durable and Powerful
The newly-developed CatEx SR sensor calibrates within seconds and protects against shocks, measuring flammable vapors, such as gasoline, diesel, and nonane. The unit can also be set to measure methane, propane, hydrogen, and many other gases. The performance is complemented by Draeger's simple cross calibration concept, in which the measurement gas, calibration gas, and bump test gas can be specified individually. The X-am 5800 calculates the necessary conversations after testing, and the sensor meets the new IEC standard 60079-29-1 (International Electrotechnical Commission) standards.

With decades of experience in sensor technology, Draeger develops and produces the sensors itself, including the powerful and durable electrochemical sensors in the XXS format, resulting in lower operating costs.

Focus on Sustainability
During the development of the X-am 5800, sustainability was priority. The durable Draeger sensors and the rechargeable power supply, which can be easily replaced with one screw, ensure a long service life. Almost all spare parts can be replaced by trained users, with remaining parts repaired by Draeger Service. In addition, the X-am 5800 is compatible with accessories from the previous series. Upon request, a reduced number of instructional manuals will be supplied, saving paper, and recycling of old devices is available.

• The 1 - 6 gas monitor is equipped with a particularly shock-resistant CatEx sensor and is suitable for the measurement of many different gases.
• With powerful sensors, clear signalling and a clear display, the X-am? 5800 offers the highest level of safety.
• With the external Draeger X-am? pump, the device can be used for clearance measurement in channels, shafts or tanks.
• The X-am? 5800 features a charger with an in-truck charging option and is scalable up to 20 connected charging cradles.
• With the gas detector you can reliable detect leckages, whereever gases or flammable liquids are stored or transported.
• Via Bluetooth?, the recorded data from the X-am 5800 can be sent to the cloud backend of the Draeger Gas Detection Connect software via a smartphone. The same backend is filled with data that are read-out from the Draeger X-dock? test station.
• Together with the Draeger X-dock? test station, you can easily perform bump tests and calibrations and achieve powerfull asset management.
• Measurable gases: Ex, O2, CO, H2S, NO2, SO2 + (choice out of > 30 sensors)
• Sensorports: 4
• Number of gases: 1 - 6
• Applications: Personal Air Monitoring + Confined Space Entry
• Sensor technology: Cat + EC
• Operation time: >12h
• Dimensions (W ? H ? D): 0.16x0.43x0.14 ft
• Weight: 0.49 lb
• Battery type: NiMH
• Degree of protection (IP class): IP 68
• ATEX: I M1 Ex da ia I Ma; II 1G Ex da ia IIC T4 Ga
• IECEx: Ex da ia I Ma; Ex da ia IIC T4 Ga
• c CSA us: Class I Div. 1 Group A, B, C, D, E, F, G T4/T3, A/Ex da ia IIC T4/T3 /Ga
