Portable Single Gas Detector - Pac 8500 with Bluetooth | Draeger

Portable Single Gas Detector - Pac 8500 with Bluetooth | Draeger

Available Options

• Dual-sensor H2S/CO personal gas detector with Bluetooth for comprehensive exposure tracking in petrochemical, industrial, and utility sectors.
• Dual O2/CO detector with Bluetooth for seamless gas exposure data sharing. Used in confined space and safety compliance applications.
• H2S/O2 gas detector with Bluetooth for multi-gas monitoring in field safety operations, emergency teams, and process plants.

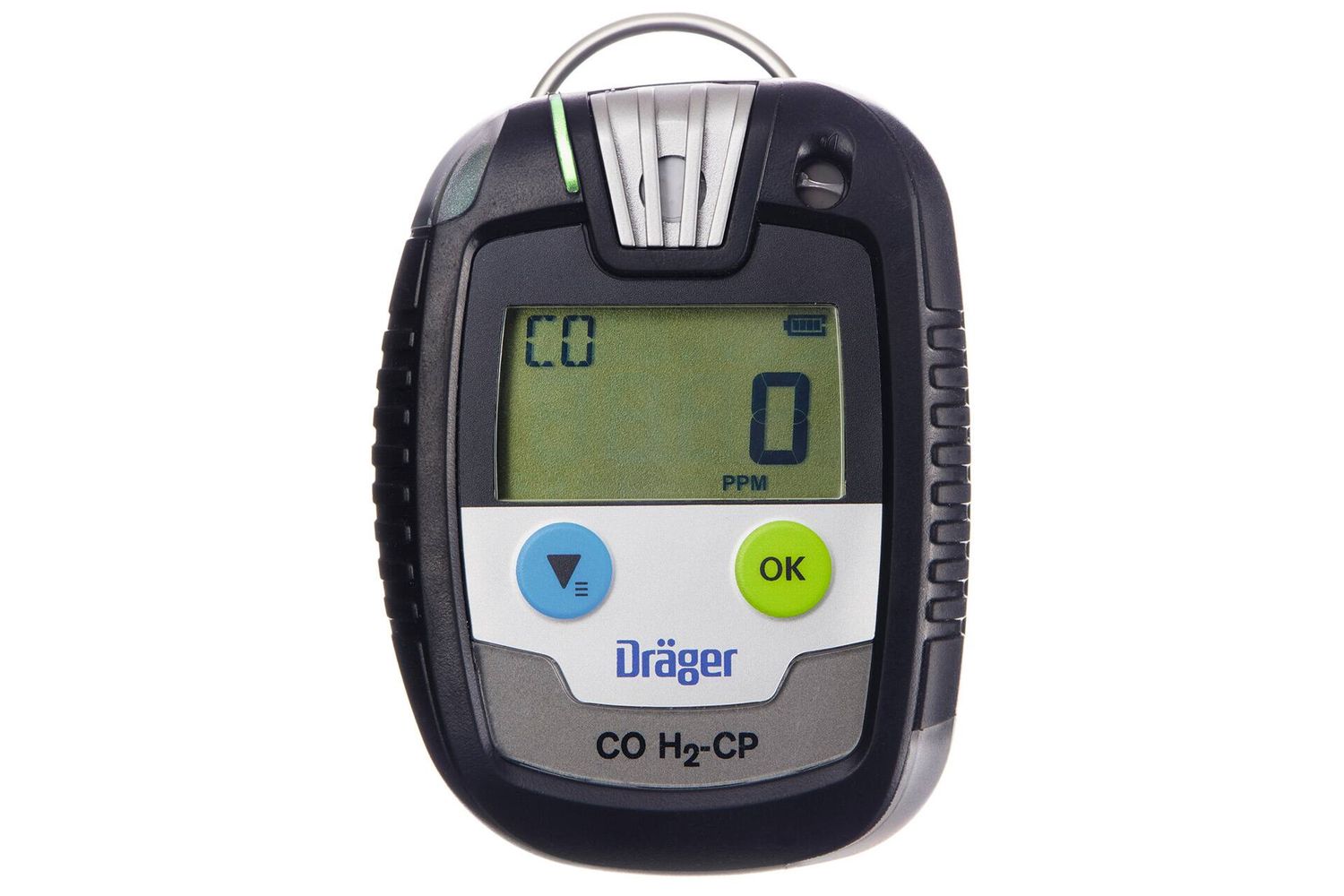

Draeger Pac? 8500
The Draeger Pac? 8500 single-sensor detection device is a reliable and precise instrument even under the toughest of conditions. The detector can be equipped with a hydrogen-compensated CO sensor or a Draeger dual sensor. The dual sensors provide the option of measuring two gases at once: H2S with CO, O2 with CO, or H2S with O2.

Strong performance for maximum safety
You can count on the Draeger Pac 8500 to give you reliable, precise readings at any time even under extreme conditions. Our powerful sensors with a low t90 response time ensure quick reactions. In addition to the standard alarms, you can define extra alarm thresholds for TLV?* and STEL*.

The Pac 8500 also provides a data and event logger for logging concentrations and events along with the date and time. The data can be loaded on a PC via an interface and processed further there.

* TLV? = Threshold Limit Values, STEL = Short Term Exposure Limit


Two gas detectors in a single-gas format
The Draeger Pac 8500 series offers the following sensor combinations: hydrogen sulfide with carbon monoxide, oxygen with carbon monoxide, or hydrogen sulfide with oxygen. Dual sensors enable detection of even low concentrations ? all in one and the same handy device. Measuring two gases at the same time reduces downtime as well. You can take vol.% measurements of oxygen and ppm measurements of carbon monoxide simultaneously using just one gas detector.

Measurement of carbon monoxide with significantly reduced cross sensitivity
In industries where carbon monoxide needs to be measured with hydrogen as a background gas, the measured value for carbon monoxide may be falsified by cross sensitivity. Thanks to the special hydrogen-compensated CO sensor from Draeger, this cross sensitivity to hydrogen is significantly reduced in the display of carbon monoxide. This new feature can eliminate the need to carry two different detectors.

Robust design ? even for the toughest conditions
The Pac 8500 is easily handled in even extreme conditions. The sensors can tolerate air pressures between 700 and 1,300 mbar. A membrane filter protects the sensor from foreign matter such as dust and liquids. The shock-proof, chemical-resistant housing meets the requirements specified in the IP68 standard rating.

Easy handling thanks to clear user guidance
The D-Light indicates whether functionality of the device has been tested and if it is ready to use. The housing is also designed with your safety in mind: each sensor variant of the Draeger Pac 8500 features clearly visible color coding, thereby minimizing the chance of mistakes.

User-friendly display with all important information
The large display is word-free and clearly indicates the respective gas concentration. Other important information, such as the unit of concentration and battery capacity, is also displayed. The bright backlighting ensures that all values are clearly legible in the dark.

360? alarm with various functions
If the Draeger Pac 8500 measures hazardous gas concentrations, it sets off an audible, visual and perceptible vibrating alarm. Two bright, flashing LEDs on the top and bottom of the device ensure that the alarm is easily visible from all sides. The acoustic signal reaches a volume of 90 dB. The display can show the peak concentration measured at any given moment. Earlier alarms registered can also be retrieved at a later time, even if they have been acknowledged.

The Pac 8500 with oxygen sensor has two additional alarm thresholds in addition to the standard alarm threshold settings. This provides an additional level of safety as a pre-alarm, in addition to the main alarm, can be set for both oxygen enriched and oxygen deficient atmospheres.

Economical operating costs
All of the versions of the Draeger Pac 8500 are equipped with extremely durable DraegerSensors and a powerful battery.

The Pac 8500 is protected against water, dust and other foreign bodies by a special membrane filter. When the filter becomes heavily soiled in use, you can quickly and easily replace it yourself. The detector is then ready to use again right away. Thanks to the powerful battery, the Pac does not require charging on a daily basis and is easy to handle.

Fast function test saves time and money
Function tests and calibrations can be carried out especially efficiently in the Draeger X-dock? calibration station. The automatic bump tests in the X-dock are a cost-efficient and convenient solution thanks to the short test duration and the extremely low consumption of test gas. The Pac 8500 is simply placed in the bump test station and automatically selects the correct setting.

• The dual sensor convert the single-gas monitor into a two-gas detector.
• The Pac 8500 can be used with a hydrogen-compensated CO sensor.
• The Pac 8500 can be equipped with a a dual sensor of hydrogen sulphide and carbon monoxide.
• The gas monitor can detect two gases at once with a dual sensor for oxygen and carbon monoxide.
• The Pac 8500 is suitable for personal air monitoring in rescue services.
• Sensor type: Single-Gas Detector
• Measurable gases: CO H2-CP, CO/H2S, CO/O2
• Application: Personal Air Monitoring
• Lifetime: unlimited
• Temperature range (device): -40?F - 131?F
• Battery service life: 2 years (24/7)
• Air humidity (relative humidity) in %: 10% to 90%
• Air pressure (hPa): 700 - 1300
• Degree of protection (IP class): IP 68
• Weight: 0.23 lb
• Changable filter: easy to change from outside / mechanical connection
• ATEX: I M1 Ex ia I Ma II 1G Ex ia IIC T4 Ga (Zone 0)
• IECEx: Ex ia I Ma Ex ia IIC T4 Ga
• c CSA us: Class I, Zone 0, AEx ia IIC T4 Ga, Class II, Division 1, Group E, F, G
