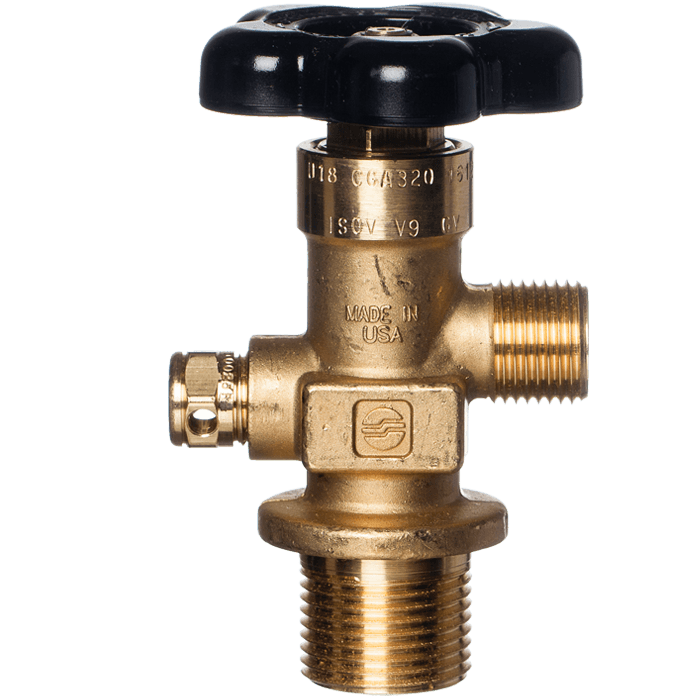

Sherwood Brass Commercial CO2 Valve for 1-1/8" Straight Thread Aluminum Cylinders
SKU CMA10
C$81.16
In stock
1
Save this product for later
Have questions?
Sherwood Brass Commercial CO2 Valve for 1-1/8" Straight Thread Aluminum Cylinders
Product Details
Brand: RS Steel
Sherwood Brass Commercial CO2 Valve for 1-1/8" Straight Thread Aluminum Cylinders | RS Steel
Sherwood Brass Commercial CO2 valves for aluminum cylinders. Valves come threaded to accept siphon tube when COMB adapter is used.
- GV Series: Up to 3000 PSI Working Pressure
- Heavy-duty forged brass body for durability and high pressure
- Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
- Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body
- Tapped for syphon tube as required
Download
Product Spec Sheet| SKU | Mfg Item# | Applications | Gas Serivce @ 70 PSI | CGA Outlet | Outlet Thread Size | Inlet Thread Size | Ship Weight (lbs) |
|---|---|---|---|---|---|---|---|
| CMA10 | GV32051-28LX | Carbon Dioxide | 0-3000 PSI | 320 | .825-14 NGO RH Ext. | 1.125-12 UNF | |
| CM5 | GV32041-28 | Carbon Dioxide | 0-3000 PSI | 320 | .825-14 NGO RH Ext. | 1/2"-14 NGT | |
| CM7 | GV32061-28 | Carbon Dioxide | 0-3000 PSI | 320 | .825-14 NGO RH Ext. | 3/4"-14 NGT | |
| CM10 | GV32081-28 | Carbon Dioxide | 0-3000 PSI | 320 | .825-14 NGO RH Ext. | 1"-111/2 NGT | |
| NIT75 | GV58061-28 | Argon, Helium, Krypton, Neon, Nitrogen and Xenon | 0-3000 PSI | 580 | .965-14 NGO RH Int. | 3/4"-14 NGT | |
| NIT100 | GV58081-28 | Argon, Helium, Krypton, Neon, Nitrogen and Xenon | 0-3000 PSI | 580 | .965-14 NGO RH Int. | 1"-111/2 NGT | 7010BSL |
ADDITIONAL NOTES
Includes OR216AYou May Also Like
