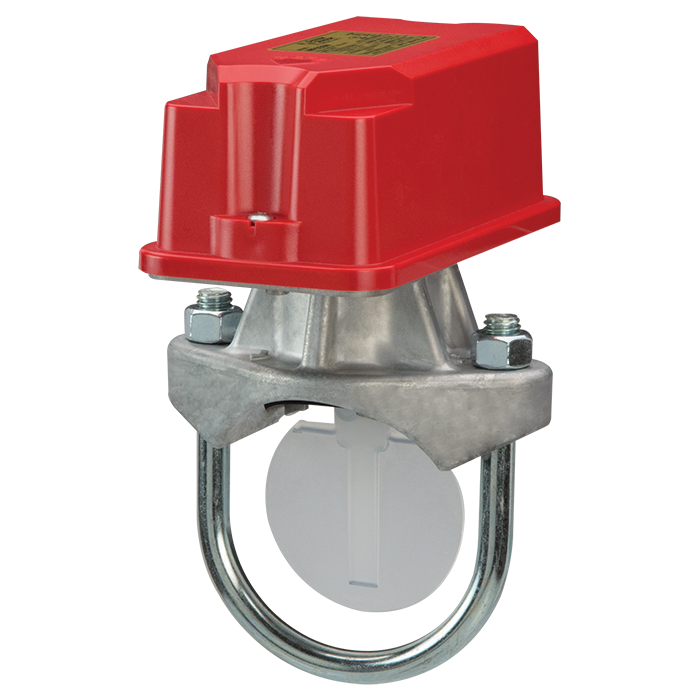

WFDNA Series Waterflow Detector
SKU WFD20NA/WFD25NA/WFD30NA/WFD40NA/WFD50NA/WFD60NA/WFD80NA
C$429.21
Pipe Size
In stock
1
Save this product for later
Have questions?
WFDNA Series Waterflow Detector
Product Details
Brand: RS Steel
WFDNA Series 2" Waterflow Detector | RS Steel
????
The WFD20NA is a waterflow detector for use with 2" pipe.
- NEMA 4 rated
- Audible and visual switch activation
- Switch Synchronization activates both alarm panel and local bell
- or horn strobe
- Tamper-resistant cover screws
- 2", 2-1/2", 3", 4" and 5" fit Schedule Piping 7 through 40
- 6" and 8" fit Schedule Piping 10 through 40
| SKU | Listing | Hole Size (In.) | Pipe Size (In.) | Other | Switch Type | Enclosure Rating |
|---|---|---|---|---|---|---|
| WFD20NA | ULC, FM | 1-1/4 | 2 | 7 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
| WFD25NA | ULC, FM | 1-1/4 | 2-1/2 | 7 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
| WFD30NA | ULC, FM | 2 | 3 | 7 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
| WFD40NA | ULC, FM | 2 | 4 | 7 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
| WFD50NA | ULC, FM | 2 | 5 | 10 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
| WFD60NA | ULC, FM | 2 | 6 | 10 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
| WFD80NA | 2 | 8 | 10 thru 40 Schedule Pipe | 2 x SPDT | NEMA 4 |
